Marine Grade Aluminum Pipe Fitting
What is Aluminum Pipe Fittings?
Aluminum pipe fittings connect with aluminum pipe for secure, leak-free connections. Most aluminum-to-aluminum pipe threads bind together quickly and permanently. Aluminum, known for its corrosion resistance, is lighter weight than steel or copper. These fittings adapt to indoor and outdoor applications including plumbing, racks and railings, and compressed air systems. Aluminum pipe fittings come in a variety of sizes and shapes.
Aluminum pipe fittings connect with aluminum pipe for secure, leak-free connections. Most aluminum-to-aluminum pipe threads bind together quickly and permanently.
Marine aluminum pipe fitting plays a key role in the ship piping system. Its main functions include the following aspects: connecting and fixing pipes, changing the direction and branching of pipes, compensating displacement and reducing vibration and noise, controlling and regulating the flow of media, etc. It includes aluminium reducer, aluminum flanges, aluminum pipe caps, aluminum tees and aluminum elbow.
Applications: structural shipbuilding, boat hulls, boat lifts, docks, and other offshore structural applications

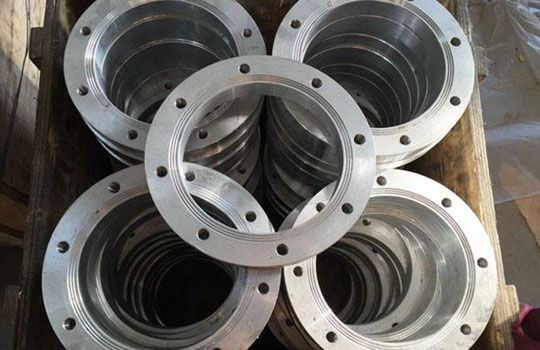

Aluminium Flanges
Aluminum Flanges are made from Aluminum or Aluminum Alloys. They are lightweight and resistant to corrosion, which makes them popular in Industrial and Marine applications involving harsh environments.

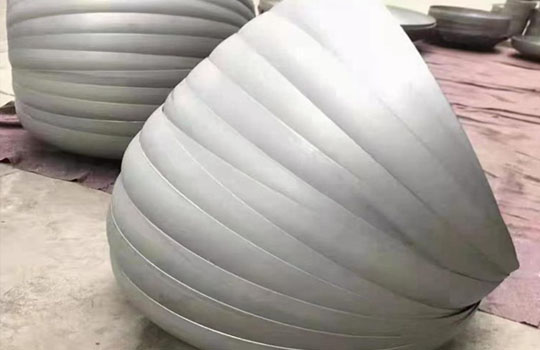

Aluminum Fittings pipe caps
We produce and supply 5086 H32,6061 T6 Aluminum Fittings pipe caps, The whole production process is under the ISO9001:2001 strictly, It can be customized according to customer requirements

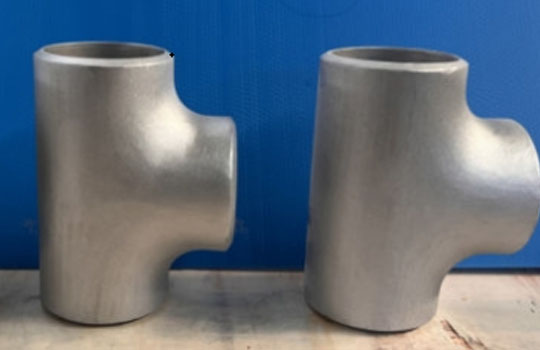

aluminumTees
Aluminum tee is a type of pipe fitting used to divide a main pipeline into two or three branch pipelines, typically made of aluminum material. There are three types of aluminum tees: straight, equal diameter elbow, and variable diameter.

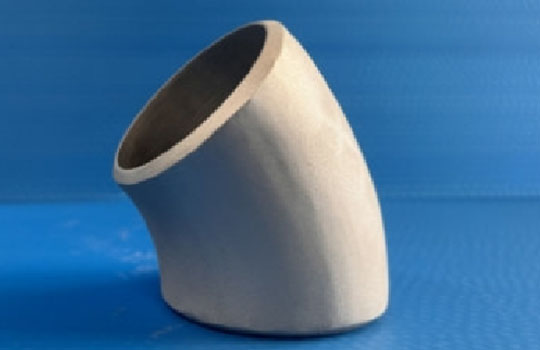

Aluminum elbow
In our offer you will find aluminum elbows made of aluminum with a raked end in many different diameters from 16 mm to 102 mm, bent from 30cm and 60cm tubes.
Aluminum reducer
Aluminum reducers connect pipes of different diameters. They are lightweight, corrosion-resistant, and cost-effective, and come in two types:
aluminum friction stir welding plate
Aluminum Friction stir welding plate - FSW plate. Aluminum alloy friction stir welding external walls, roofs, rain sheds for large ship buildings
Classification of marine pipe fittings
Connection method: Socket-type pipe fittings are directly nested and connected through the pipe mouth, which is suitable for low-pressure environments; threaded pipe fittings are quickly installed by spiral bite, which is common in small pipes; flange pipe fittings are connected with sealing gaskets by bolts, which are suitable for high-pressure and large-diameter scenes; welded pipe fittings are permanently sealed by welding, which are mostly used for hull structural parts.
Functional use: In addition to basic connectors such as elbows and tees, there are also special components such as reducers for reducing diameters, valves for controlling flow, and brackets for fixing pipelines, forming a complete pipeline ecosystem.
Material characteristics: Carbon steel is the mainstream with high strength and low cost, stainless steel is used in seawater systems with its corrosion resistance, and copper alloys are outstanding in heat exchange equipment. Aluminum pipe fittings, with their light weight and high strength, have emerged in the lightweight process of ships.

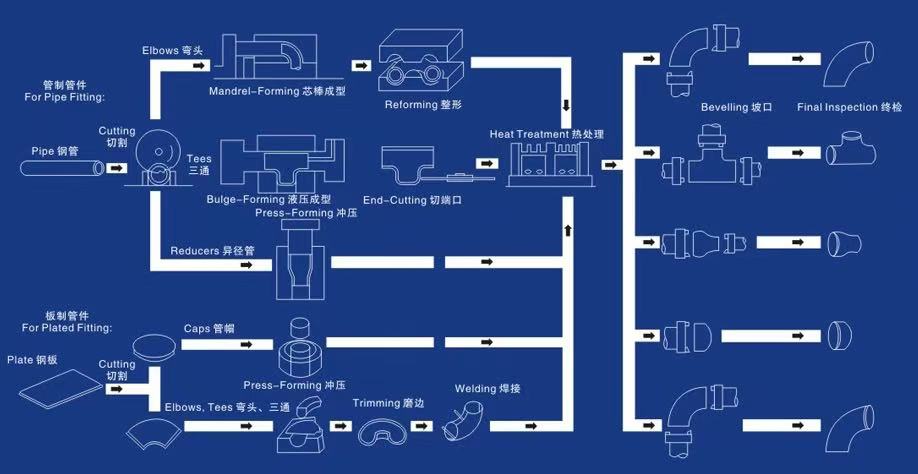

Pipeline Accessories - Processing Flow
